ATEX
CERTIFIED

OUTLET/INLET
PRESSURE

MEDIA
TEMPERATURE

AMBIENT
HUMIDITY

ACOUSTIC
SENSING

3D
ACCELEROMETER
Ham-Let’s Internet Of Things (IOT) Smart Valves present a unique breakthrough in the process valves industry. Our solution enables online monitoring, control and management of various processes which allow immediate response for safety events, machine learning and optimization, machinery & equipment protection, device tracking and additional customer tailored features

INDUSTRY CROSSING APPLICATIONS

  • Process control & monitoring
  • Process management
  • Machinery and equipment protection
  • Predictive maintenance
  • Failure prevention
  • Safety alerts
  • Data analytics

USE CASES

  • Ability to provide real time pressure readings for both inlet and outlet pressure independently.
  • Use differential pressure to detect line burst, which will trigger the valve shut off.
  • Preventing fire with high temperature detection and fire suppression system triggering
  • Shut off machinery after sensing strong vibrations that indicates possibility of mechanical malfunction
  • Provide real time monitoring of plants ambient and media parameters under intrinsic safety environment.
  • EPC companies looking to work on integrating multiple measuring tools and fittings under space constraint can use an integrated IoT valve to save space and cost.

BENEFITS

  • Increased safety
  • Reduced downtime costs
  • Improved performance
  • Lower total cost of ownership
  • Optional process optimization
  • Enables machine learning

IoTH-800KL Series
SMART CYLINDRICAL VALVES

The IoTH-800KL ETH is the large body configuration of the IoTH-800 Series. This smart valve is based on Ham-Let's state-of-the-art one-piece Cylindrical Valve series (H-800KL), which is suitable for low and high working pressure, wide temperature range and long life cycle. The one-piece body design reduces possibility of shell leakage and offers tight shut-off, long-life service and low operating torque.

The IoTH-800KL series featured wired (ETH) and wireless (WLS) configurations.

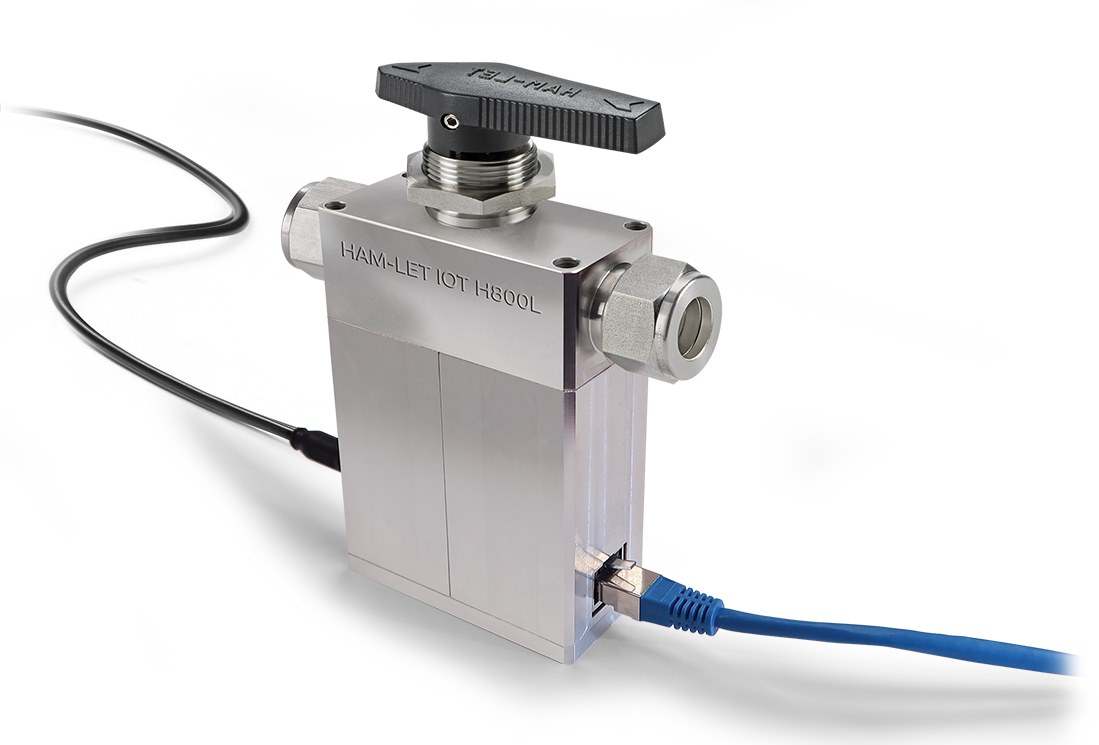

The wired IoTH-800KL ETH can be used for various use cases, as it features online measurement of multiple sensors, precise differential pressure, motion indication and safety shut down.

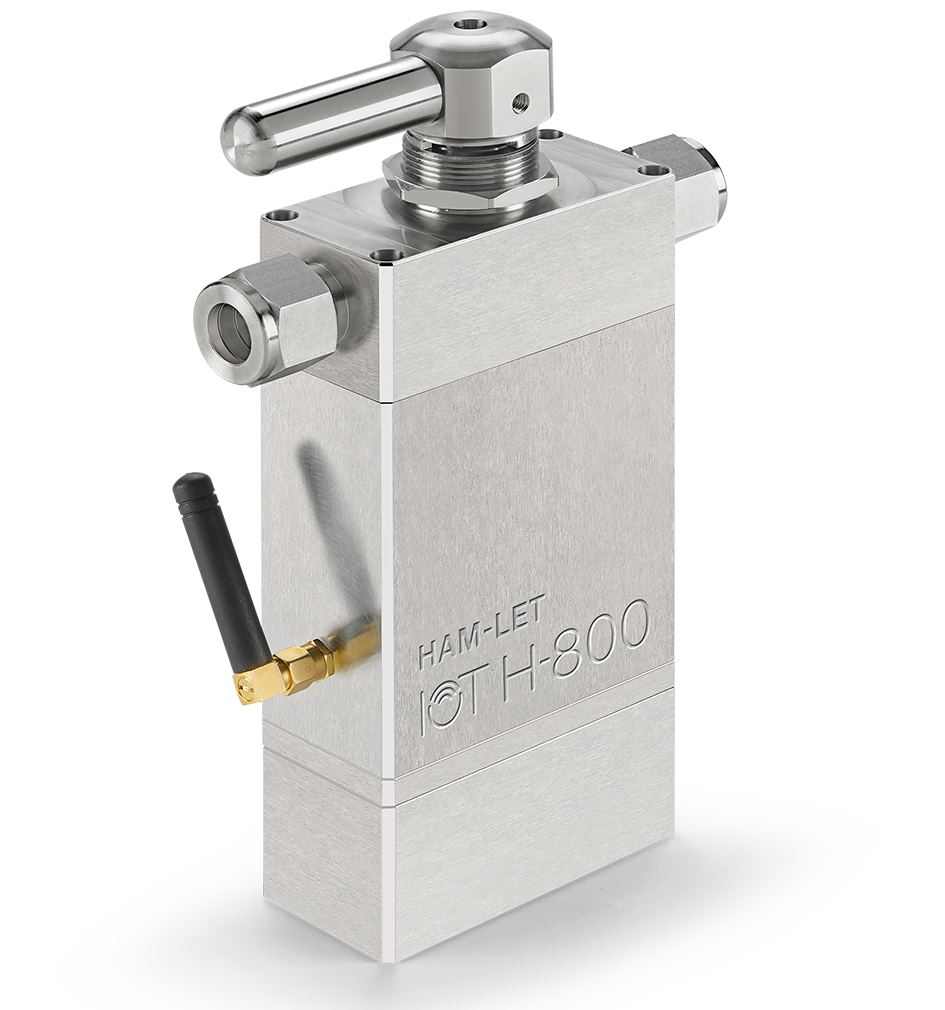

The wireless IoTH-800KL WLS can be used in critical process points at isolated locations, as it features long range wireless connectivity and long battery life to sustain continuous online measurement of multiple sensors, precise differential pressure, motion and safety shut down.

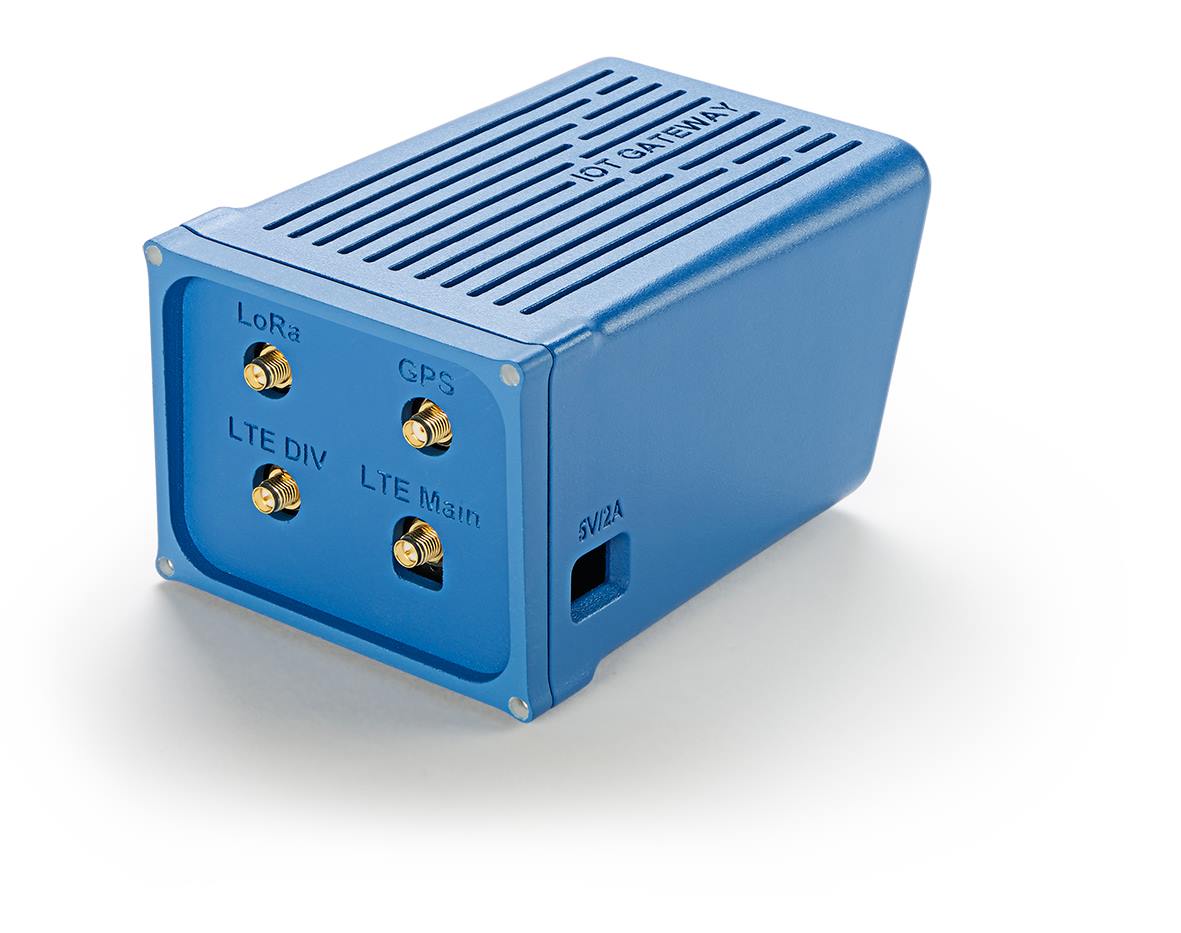

IoT GATEWAY

Ham-Let's IoT Gateway enables secured wired and wireless connection to the local control systems or to cloud computing services, such as IOT-LET (Ham- Let's smart valve managent platform). The IoT Gateway is onboarded to IOT-LET via secured communication using an unique ID. It also features encrypted data storage and internal communication with both our smart valves as well as our IOT-LET portal.
